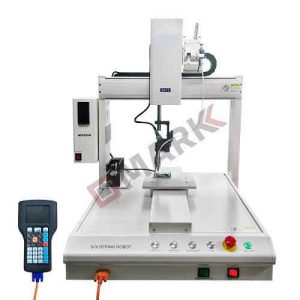

Starobot Soldering Robot:
Soldering Robot provides the best solution for soldering job on lead-free, heat dissipating PCB, and high thermal capacity components. It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering.
Specifications:
| Model | MARK -S5331R |
| Solder Joint Range | X500* Y1/300*Y2/300*Z100mm（XxYxYxZ） |
| Solder Time | 1.0~1.5s/point |
| Repeat Positioning Accuracy | ±0.002mm |
| Solder Wire Diameter | 0.5, 0.6, 0.8, 1.0, 1.2 (mm) |
| Air source | 0.4-0.6 MPA |
| Axis | 5 |
| Program Capacity | 999 files, each file can save up to 999 points |
| External Dimensions(WxDxH) | 820mm x 600mm x 800mm |
| Weight | about 65kgs |
Features:
- Applicable for different products, soldering temperature can be set freely.
- The soldering iron unit can be multi-directionally adjusted, which can protect the PCB and components from damage.
- Numerically controlled temperature (static air condition: ±1℃)
- With the handheld LCD Teaching Pendant, the programming is simple and easy to learn.
- In the soldering process, the solder tip has rapid heat recovery and a long life span.
