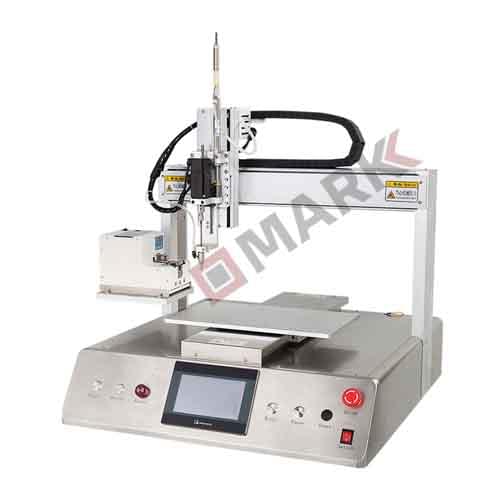

MARK-4245-1Z Magnetic Suction Type Screw Fastening Robot


MARK-4245-1Z Magnetic Suction Type Screw Fastening Robot

● Model:  MARK-4245-1Z
● MOQ:  1set
● Packing details:  1 set / carton

MARK-4245-1Z  (Magnetic Suction type)

Screw Fastening Robot

Screw Fastening Robot greatly improves the work efficiency and the screw fastening consistency & reliability. With the advanced Teaching Pendant, operators can set up by themselves all the process parameters such as the screw coordinate and screw types, etc. It can adapt to all sorts of difficult screw fastening process and achieve the complete automation.


Model WT-4245-2Z
Operating Range (X * Y * Z) X450*Y1/420*Z135mm
Movement Speed X/Y Axis: ≤500mm/s,  Z Axis: ≤300mm/s.
Repeatability  Accuracy  ±0.03mm
Screwing time for each screw 1.0~1.5s /piece
Suitable screw size M1.5 – M4 (total screw length ≤ 16mm)
Control system SCM + Touch Screen
Program capacity 15 files, each file can save up to 99 points
Air source 0.4 -0.6 Mpa
Dimensions (WxDxH) 810 x 720 x 900mm
Weight about 80 kgs


  1. Permanent magnet suction screw structure, deep hole / bevel screw / meson screw locking function for product locking screw position
  2. Support anti-leak lock / sliding / floating tooth alarm function
  3. Support pre-release or pre-release adjustments
  4. Support automatic induction start operation function
  5. Support servo electric batch speed and torque automatic adjustment function
  6. Support manual drag adjustment, lock screw point adjustment function


It is suitable for all kinds of screw fastening process on mobile phones, keyboards, monitors, car accessories, toys, small home electrical appliances, integrated circuits, printed circuit boards, LCD screen, electronic components (such as relays, speakers), etc.
