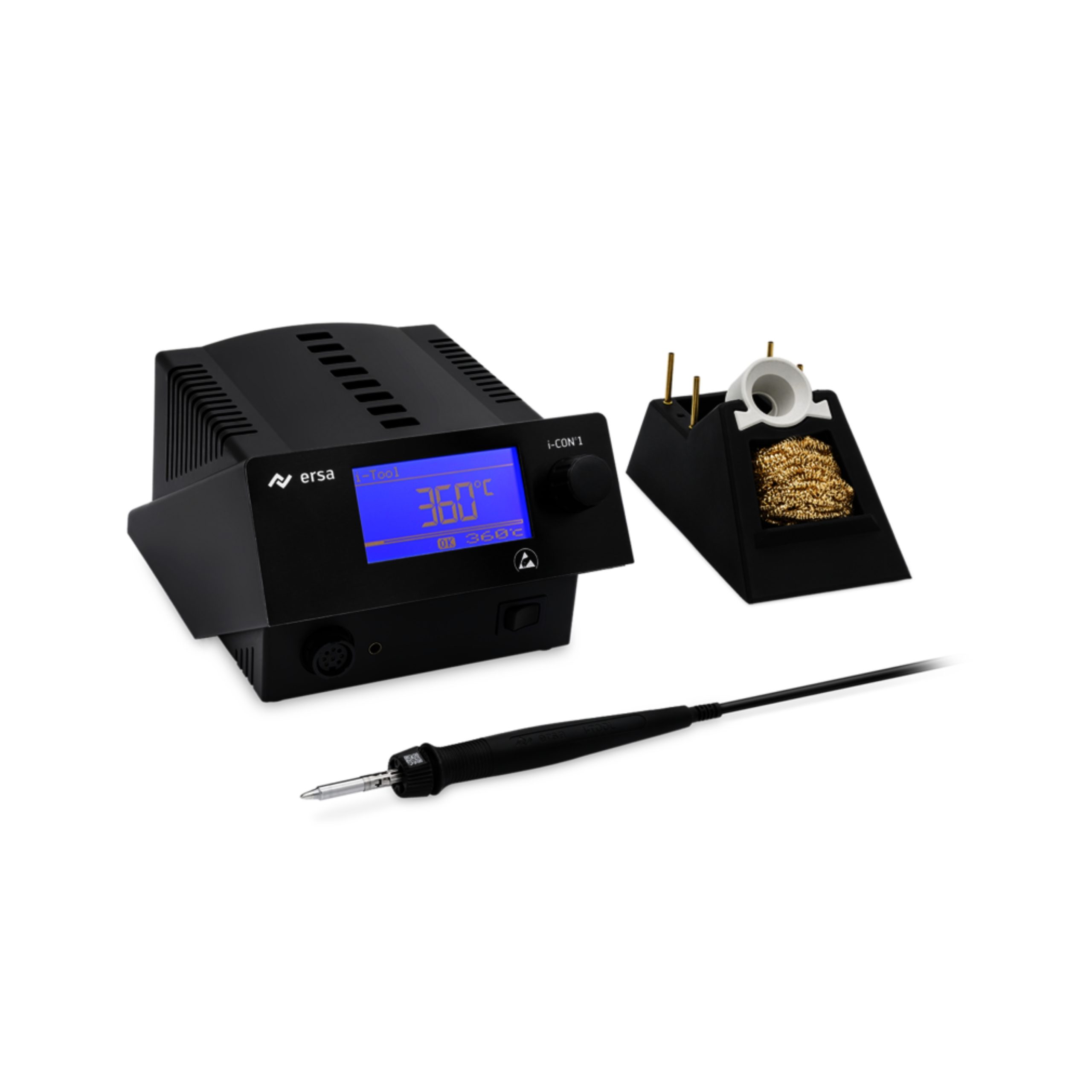

Ersa Soldering Station i-CON 1 MK2

electronically controlled soldering station, max.150 W

          Highlights i-CON 1 MK2
  • Digital soldering station with ergonomic and powerful 150 W i-TOOL MK2 soldering iron
  • Motion sensor in the hand piece for energy and tip saving standby mode
  • Easy operation – intuitive one touch push button and large multifunctional displays
  • Optical information when the optimal process window is reached
  • Available with interface to solder fume extraction unit, heating plate and PC
  • Antistatic design
Categories: ,

                                    Technical Data

  • Dimensions (W x D x H) in mm:                       150 x 175 x 105
  • Weight in kg:                                                              3,0
  • Antistatic Design (y/n):                                                 j
  • Power Rating in W:                                                   max.150
  • Nominal voltage in V AC:                                           230
  • Secondary voltage in V:                                             24
  • Heat up time in sec:                                                   9
  • Temperature range in °C:                                     150-450
  • Digital display (y/n):                                                    j
  • Test symbol:                                                            CE, VDE
  • Power consumption standby in W:                         15
