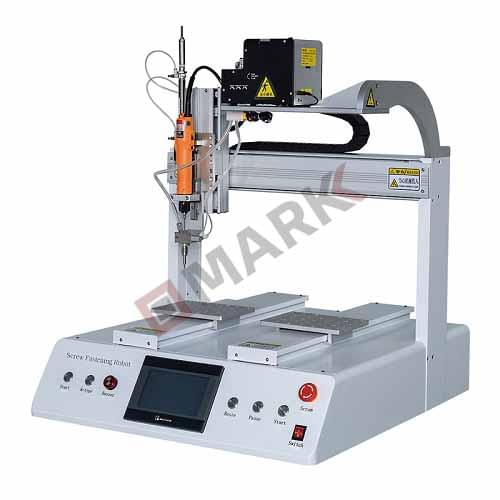

MARK 4223-2Y Screw Fastening Robot (Drop Screw type)


MARK 4223-2Y Screw Fastening Robot (Drop Screw type)

● Model:  MARK-4223-2Y
● MOQ:  1set
● Packing details:  1 set / carton

MARK-4223-2Y  (Drop Screw type)

Screw Fastening Robot

Screw Fastening Robot greatly improves the work efficiency and the screw fastening consistancy & reliability. With the advanced Teaching Pendant, operators can set up by themselves all the process parameters such as the screw coordinate and screw types, etc. It can adapt to all sorts of difficult screw fastening process and achieve the complete automation.


Model MARK-4223-2Y
Operating Range (X * Y * Z) X230 * Y1/420 * Y2/420 * Z135mm
Movement Speed X/Y Axis: ≤500mm/s,Z Axis: ≤300mm/s.
Repeatability  Accuracy  ±0.02mm
Screwing time for each screw 0.8~1.2s/piece
Suitable screw size M1.5 – M4 (total screw length ≤ 16mm)
Control system SCM + Touch Screen
Program capacity 15 files, each file can save up to 99 points
Air source 0.4 -0.6 Mpa
Dimensions 0.4 -0.6 Mpa
Weight about  80 kgs


  1. The screws will feed to the screwdriver bit directly one by one through a tube, to achieve extremely fast feeding and screwing.
    2. The operator can use manual positioning to do the programming. It is highly efficient and very easy to learn the operation.
    3. With alarm function for fastening missing, untightened screws, worn thread, etc.
    4. Support auto sensing start operation function.


It is suitable for all kinds of screw fastening process on mobile phones, keyboards, monitors, car accessories, toys, small home electrical appliances, integrated circuits, printed circuit boards, LCD screen, electronic components (such as relays, speakers), etc.
