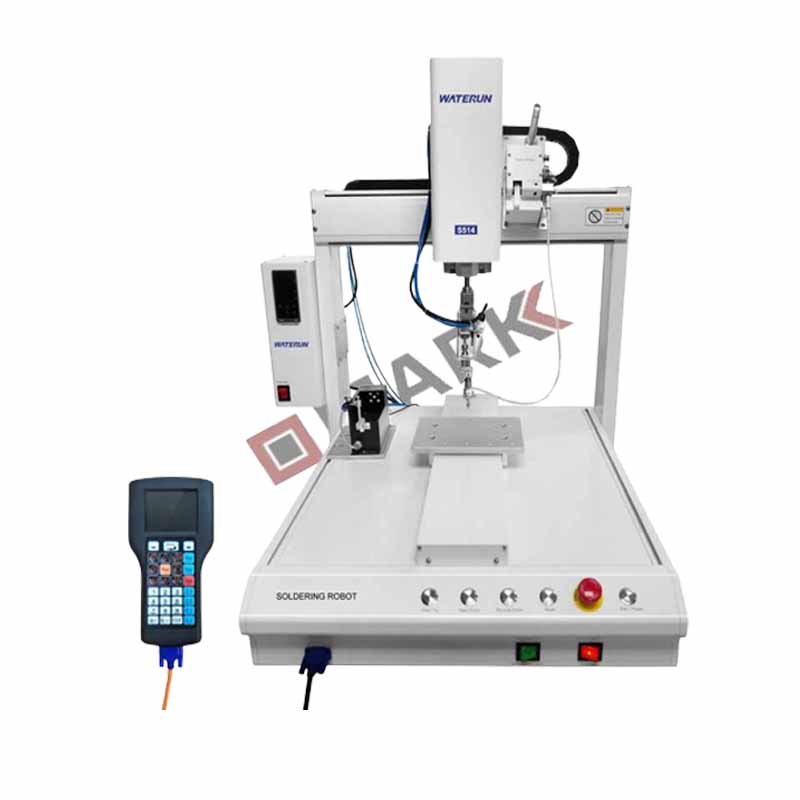

Soldering Robot

Soldering Robot

Model:  MARK – S514
● MOQ:  1 set
● Packing details:  1 set / carton

Starobot Soldering Robot:

Soldering Robot provides the best solution for soldering job on lead-free, heat dissipating PCB, and high thermal capacity components. It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering.


Model MARK – S514
Voltage 110V / 220V
Heating Power 100W
Preheating Temperature Range 0℃~500℃
Axis 4
Operating Range (X * Y * Z) 400 x 400 x 100mm
Movement Speed X * Y Axis: 0.1~600mm/sec, Z Axis :0.1~400mm/sec
Repeat Positioning Accuracy ±0.002mm
Resolution 0.01mm
Maximum Load Weight 8kg (for work platform)
Solder Wire Diameter 0.5, 0.6, 0.8, 1.0, 1.2 (mm)
Demo File Capacity ≤999files, max 1994 points for each file
Program Capacity max 255 programs
Operate Temperature 0℃~40℃
Operate Humidity 20~90%
External Dimensions 720mm x 700mm x 810mm
Weight about 66kgs


1. Applicable for different products, soldering temperature can be set freely.

2. The soldering iron unit can be multi-directionally adjusted, which can protect the PCB and components from damage.

3. Numerically controlled temperature (static air condition: ±1℃)

4. With the handheld LCD Teaching Pendant, the programming is simple and easy to learn.

5. In the soldering process, the solder tip has rapid heat recovery and a long life span.
