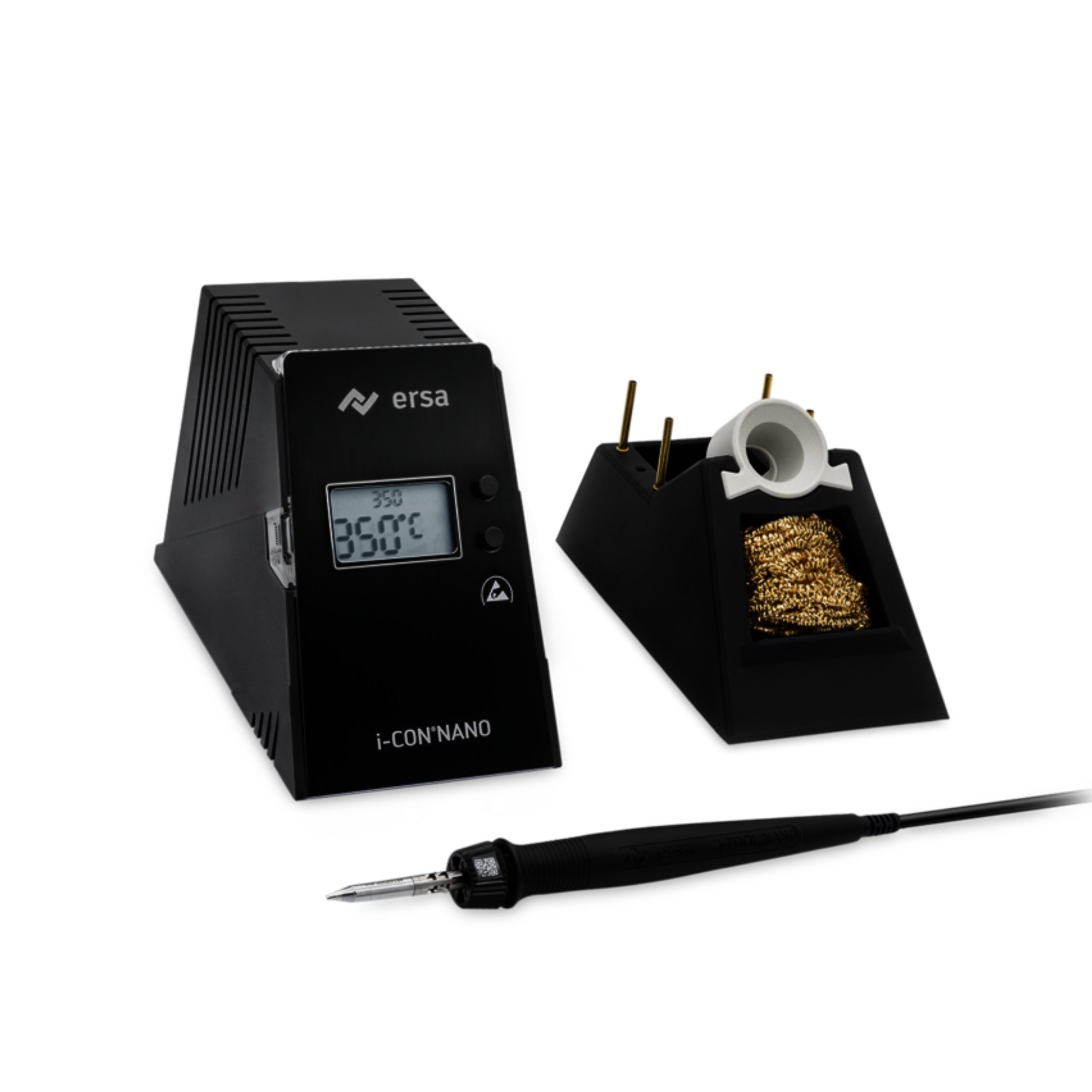

Ersa Soldering Station i-CON NANO MK2

,

Ersa Soldering Station i-CON NANO MK2

electronically controlled soldering station, max. 80 W

        Highlights i-CON NANO MK2

  • Digital soldering station with ultra-light and ergonomic i-TOOL NANO MK2.
  • Small footprint (145 x 80 mm) – saves valuable workspace.
  • Three fixed temperature settings or stepless temperature adjustment from 150 to 450 °C.
  • Three selectable energy levels.
  • Automatic standby and hibernation for lower energy consumption and higher peak uptime.
  • Wide selection of cost-effective, replaceable soldering tips (Series 142).
  • Complete parameterization using computer software and micro-SD card.
  • ESD-safe design.

                                   Technical Data

  • Dimensions (W x D x H) in mm:                             80 x 145 x 103
  • Weight in kg:                                                                     1,05
  • Antistatic Design (y/n):                                                      y
  • Power Rating in W:                                                        max. 80
  • Nominal voltage in V AC:                                          230 or 115
  • Secondary voltage in V:                                                 16,5
  • Heat up time in sec:                                                         9
  • Temperature range in °C:                                          150-450
  • Digital display (y/n):                                                        y
  • Test symbol:                                                                CE, VDE
