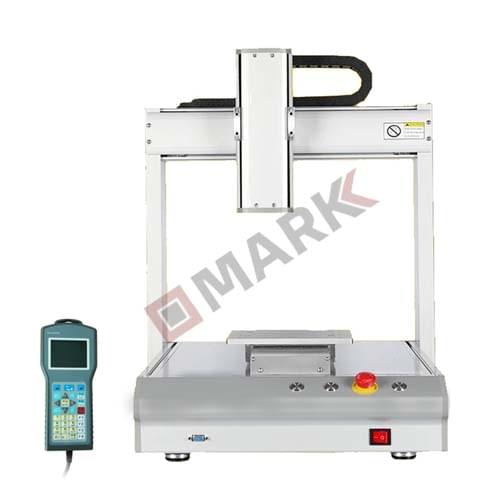

Glue Dispensing Robot
Our glue dispensing robot has high performance and cost-effective platform, the working process is flexible and fast. The dispensing velocity, time, angles and dispensing volume, etc can be control as desired. It is suitable for various glue dispensing control, replace the manual dispensing operation, to realize the automatic dispensing, it improves the production efficiency, stable quality, and keep the dispensing process consistency. It can repid recovery cost.
Specifications:
| Model | DJ-331 |
| Voltage | 110V / 220V AC |
| Operating Range (X * Y * Z) | X300 * Y300* Z80mm |
| Repeatability Accuracy | ±0.02mm |
| Movement Speed | 0.1~800mm / sec |
| Maximum Load Weight | 8kg / 4kg /4kg (X/Y/Z) |
| Editing Mode | Teaching Pendant |
| Program Capacity | 999 programs |
| Movement Patterns | Point-to-point / straight line / point, line,circle,ac |
| External Dimensions | 450mm x 450mm x 520mm (WxDxH) |
| Weight | about 50 kgs |
Features:
- Glue Dispensing Robot provides precise control over adhesive placement, from exace beads, to repeat timed dots or potting of components. Programming is simple via a teaching pendant. Even complex patterns can be d quickly.
- High speeds are achieved reducing time spent hand applying adhesives. Accuracy of placement and volume of fluid ensures zero waste, mess and error.
- It will dispenser most materials including adhesives, pastes, epoxies, gels, silicones, sealants, oils, grease, UV, AB glue, EMI conductive glue, silver glue, red glue, etc.
