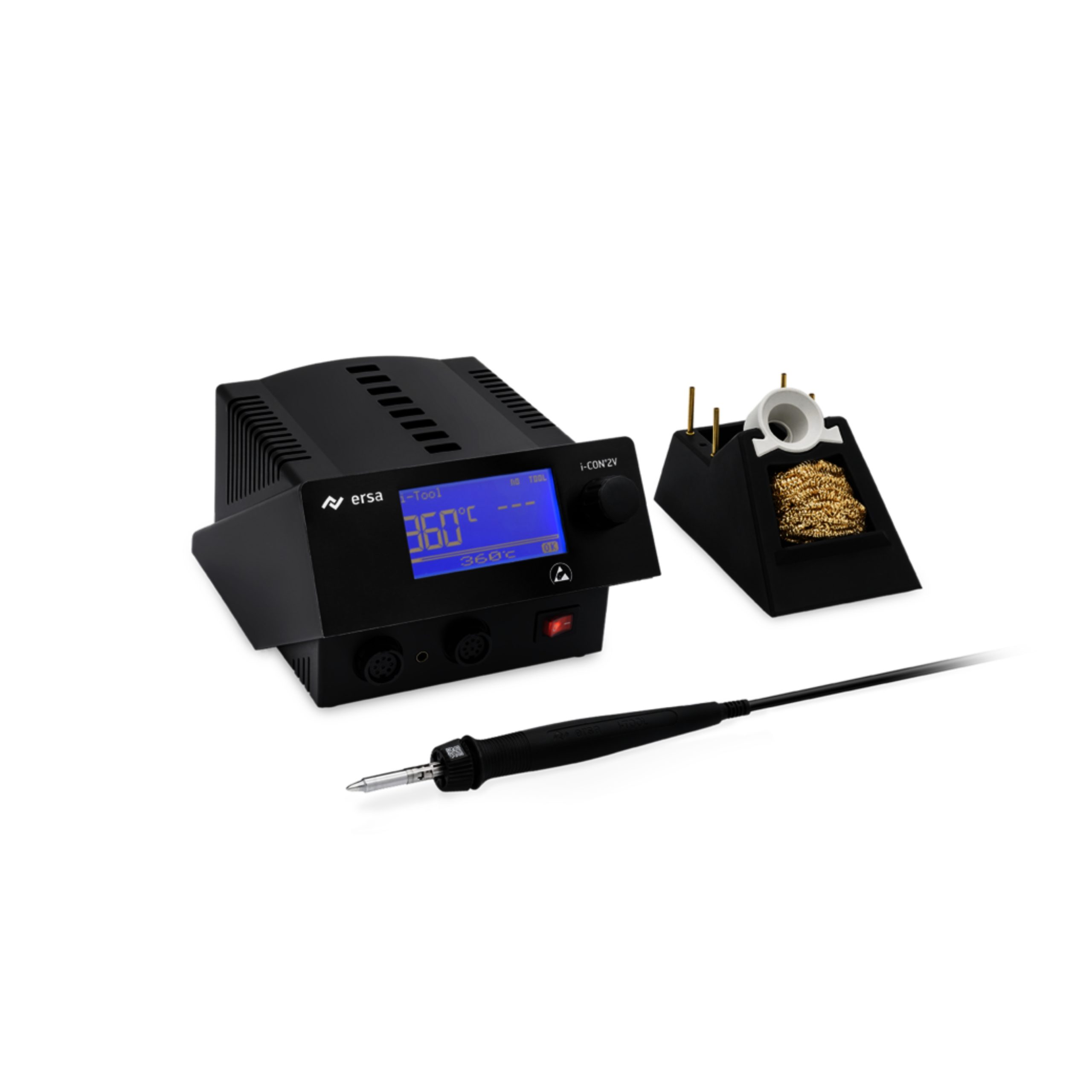

Ersa Soldering Station i-CON 2V MK2

By /
,

Ersa Soldering Station i-CON 2V MK2

dual channel, electronically controlled soldering and desoldering station, max. 150 W

                   Highlights i-CON 2V MK2

  • Soldering and desoldering station for simultaneous operation of two soldering tools.
  • Intelligent power management – 120 Ware split up dynamically between the connected tools.
  • Easy operation – intuitive one touch push button and a large multifunctional display.
  • Eight different soldering tools connectable.
  • VARIO series soldering tools connectable.
  • Available with interface to solder fume extraction unit, heating plate and PC.
  • Firmware update via microSD card.
  • Antistatic design.
Categories: ,

                    Technical Data

  • Dimensions (W x D x H) in mm:       150 x 175 x 105
  • Weight in kg:     3,7
  • Antistatic Design (y/n):        y
  • Power Rating in W:      max. 150 W
  • Nominal voltage in V AC:   230
  • Secondary voltage in V:    24
  • Temperature range in °C:  150-450
  • Digital display (y/n):      y
  • Test symbol:   CE, VDE
  • Power consumption standby in W:    20
